Expanded perlite

Time：2012-3-22 11:08:15 Source：本站原创 Hits：【字体：大中小】

1 Products

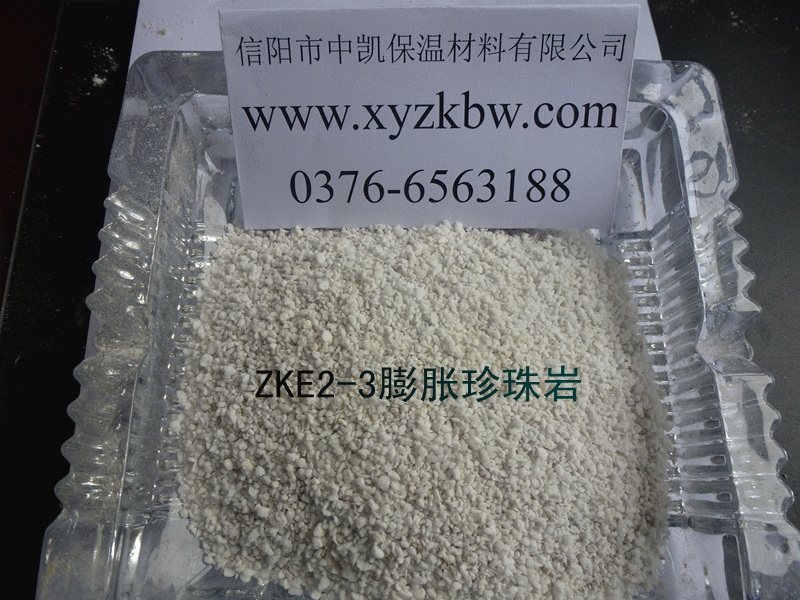

The expanded perlite perlite ore preheated instantaneous high temperature roasting expansion made an internal honeycomb structure white granular material. Principle: the formation of a certain size ore perlite ore by crushing, pre-heat roasting, rapid heating (1000 ℃) ore moisture vaporization in the vitreous of ore containing softening internal expansion, forming a porous structure, 10-30 times the volume expansion of non-metallic mineral products. perlite technology in accordance with its expansion and for different purposes are divided into three types: open hole (open cell), closed-cell (closed cell), the hollow hole (balloon).
2 Production conditions
☆ raw ore particle size;
☆ preheating temperature and time;
The ☆ expansion temperature and time.
3 Key Features
☆ the lightweight the ◎ porous ◎ insulation ◎ noncombustible
The ☆ the sound absorption ◎ water resistance ◎ nontoxic ◎ corrosion resistance
4 applications
☆ construction: the building roof and wall insulation, and insulation; lightweight aggregate building materials;
☆ Industry: dip then suppress hydrophobic perlite insulation board, sound-absorbing panels, wall panels, fire board;
☆ cryogenic, thermal insulation of cryogenic engineering, industrial equipment, and pipe insulation;
☆ agriculture and horticulture: soil conditioner, soilless culture substrate, pesticide slow death, etc.;
☆: filter aids, fillers, abrasive materials, the steel-making process set slag and other materials.
5 main component (Content%)

Element	SiO2	AL2O3		K2O	Na2O	CaO			MgO
Content	69－72%	12－18%		3－4.5%	3－4.5%	0.1－0.2%			0.2-0.5%
Project	Bulk density	Thermal conductivity	Cylinder compressive strength	Moisture content	Operating Temperature	Particle size (four)
Parameter	70-250kg/m³	0.0323-0.0455w/m·k	≥150kPa	<2-4%	-200-800℃	0.15 -4mm	2-3mm	3-5mm		4-8mm
